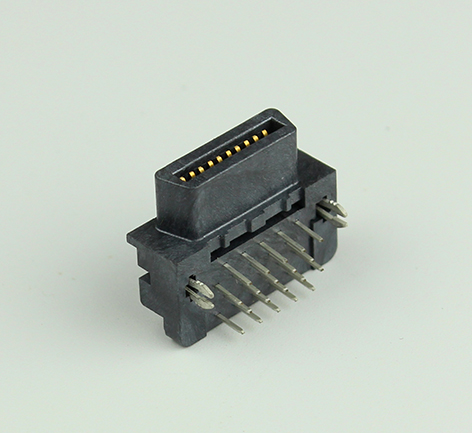

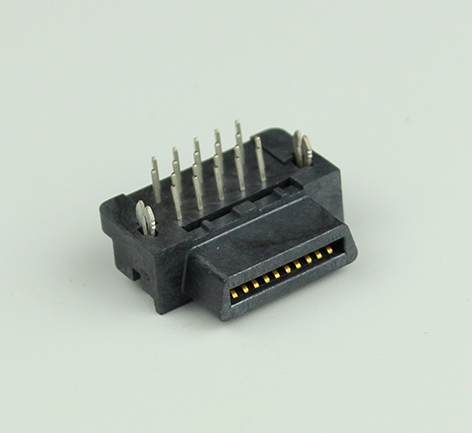

1.27mm 20pin female end plate to plate bending connector

      1.27mm 20pin female end plate to plate bending connector 1.27mm 20pin female end plate to plate bending connector
      1.27mm 20pin female end plate to plate bending connector 1.27mm 20pin female end plate to plate bending connector

      Detail

      Back

      Zt01sm series



      Ztec internal number: zt01-sm020r / A

      Can replace te internal products

      PCB connector assembly type: PCB mounting female

      PCB installation direction: right angle

      Connector system: board to board

      ?Number of Positions?: 20

      Center line (spacing): 1.27 mm [0.05 in]

      Product type characteristics



      PCB connector assembly type: PCB mounting female

      Connector system: board to board

      · sealable ? no

      Connector and terminal termination: printed circuit board

      Structural characteristics



      Stackable: no

      Number of rows: 1

      PCB installation direction: right angle

      ?Number of Positions?: 20

      Electrical characteristics



      ?Operating Voltage?(VAC): 250

      Insulation resistance ? (m Ω): 1

      Subject characteristics



      Connector shape: Standard

      PCB retention characteristics electroplating materials: nickel backing tin plating

      PCB retention material: Brass

      Contact characteristics



      Terminal base material: phosphor bronze

      PCB terminal termination area electroplating material: Tin

      Terminal base plate material: Nickel

      Terminal shape and construction: single fork, square

      Thickness of electroplating material in PCB terminal termination area: 1 μ m [39.4 μ in]

      Electroplating material of terminal contact part: Gold

      Thickness of electroplating material in terminal joint area: ? m ? [? 7.9 ? in ?]

      Terminal type: female terminal

      Terminal rated current (maximum) ? (a): 1

      Terminal layout: in-line

      Termination characteristics



      3.1 ? mm ? [? 122 ? in ?]

      PCB termination method: through hole welding

      Mechanical accessories



      Fixed type of PCB installation ?: fixed feet

      · joint alignment ? with

      · joint alignment type ?: polarization, polarization

      PCB installation and fixation: with

      Assembly alignment of PCB: without

      Connector mounting type ?: board mounting

      Usage environment



      Operating temperature range: - 55 – 85 ? C ? [? - 67 – 185 ? f ?]
